The MQB FRONT BBK (Big Brake Kit) Macan Brembo 4 pot

With much praise and development from the track and online communities we are pleased to release our rendition of the MQB BBK (Big Brake Kit) with a multitude of products from various reputable manufacturers. We hope our online selection tool will provide a comprehensive but resourceful approach to selecting the right options for you!

Specs:

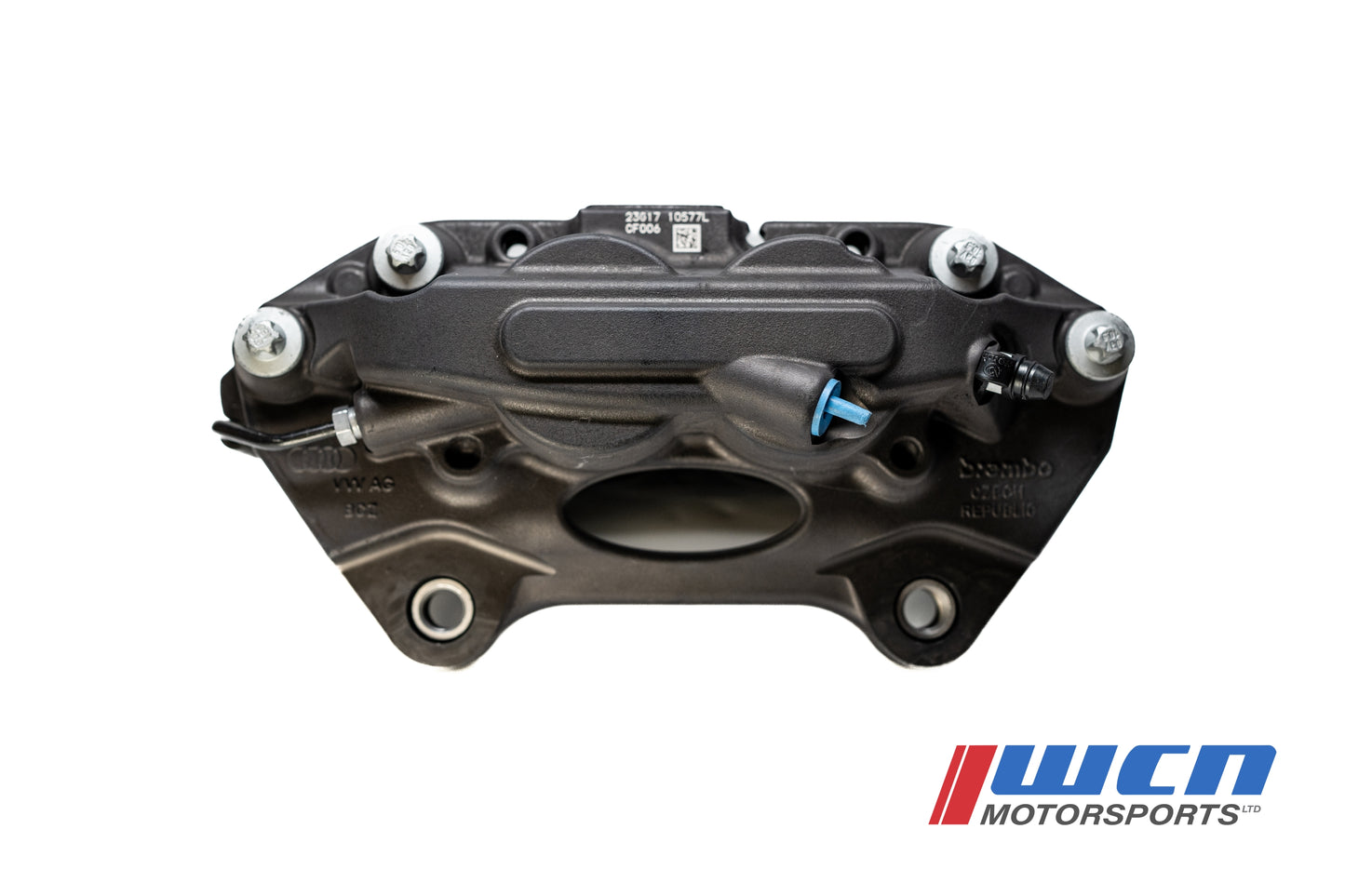

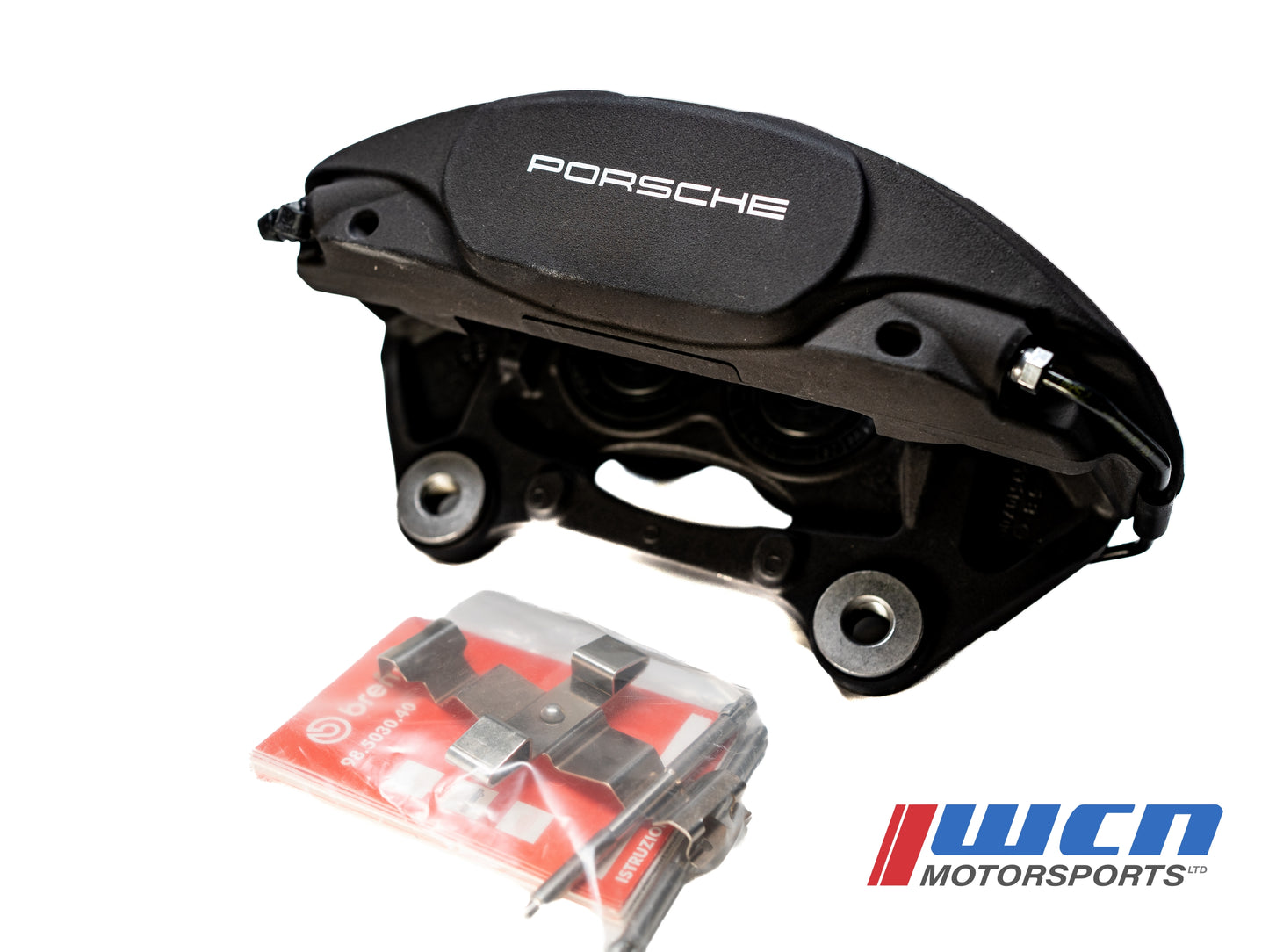

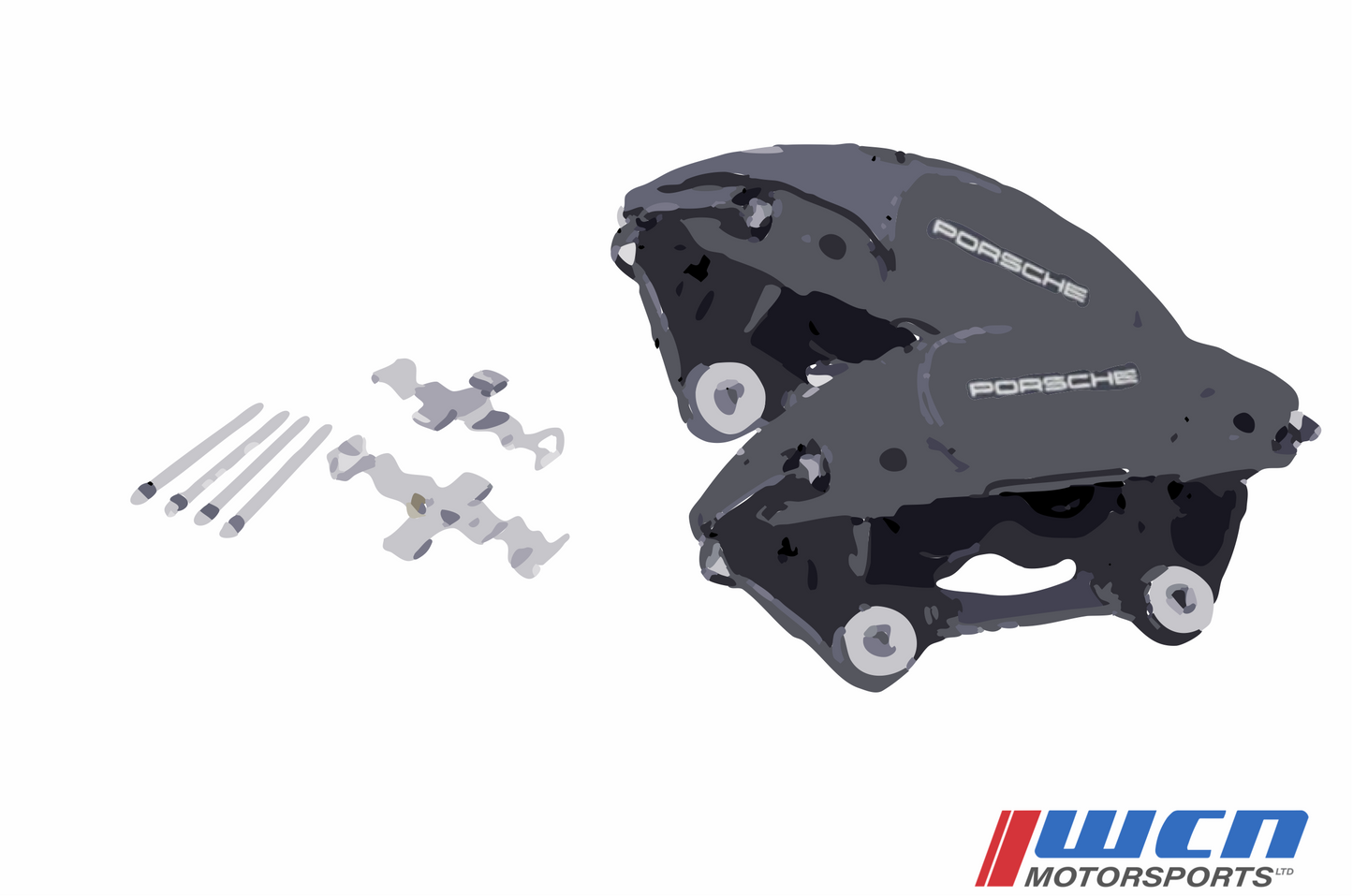

• Porsche Macan (Base) 4 Piston calipers direct mount to MQB: VW mk7-mk8( GTI, R, GOLF, SPORTWAGEN& ALLTRACK) AUDI A3 mk3, AUDI TT mk3.  ( CALIPERS LEFT & RIGHT INCLUDED)

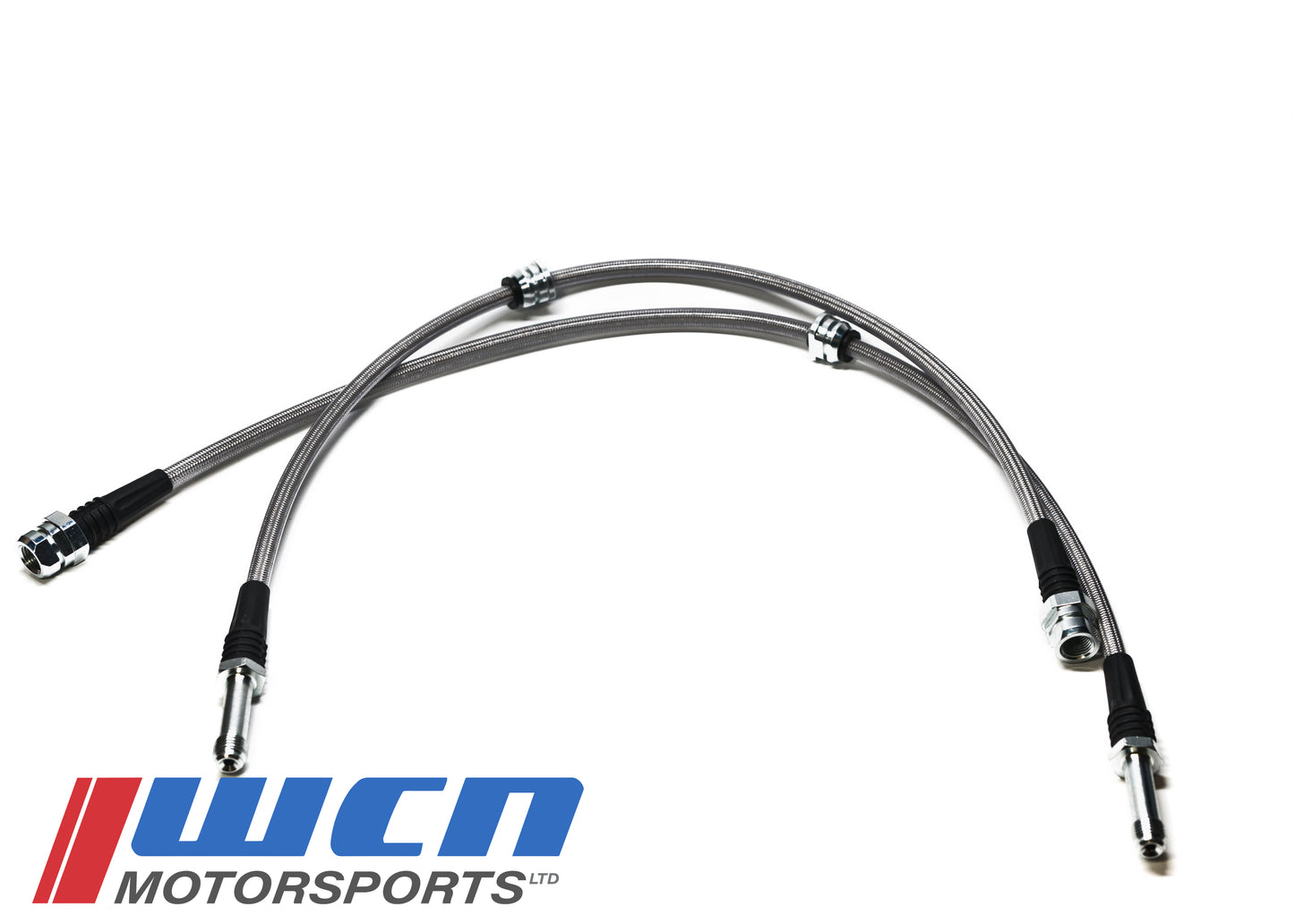

•  T-FIT STAINLESS LINES Designed for Macan Brembo 4 pot calipers to be compatible and direct fit with MQB Platform. (Optional)
• Brake pad options ranging from comfort to track: Hawk HPS 5.0(quieter street/track option), Hawk HP Plus (Semi quiet street/track more aggressive option), Hawk DTC-60 ( Most Aggressive high wear track option) and finally the Hawk ER-1(More Aggressive Endurance & low rotor wear for track option)(OPTIONAL).
• Macan Front 345mm (MQB DROP IN) Rotor Options are available with Zimmerman street standard Z coated Rotors,  DBA 4000 T3 Slotted Rotor KP 345mm X 30mm (DROP IN) Track & Street Rotors (Optional)

Parts Catalogue:

• Macan Calipers Left: 95B615123F, Macan Calipers Right: 95B615124F
• T FIT SS MK7-MACAN LINES to MQB AUDI-1250-1320-F
• ZIMMERMAN 345MM MK6R ROTOR 1K0 615 301AR
• DBA 4000 T3 Slotted Rotor KP 345mm X 30mm DBA42808S

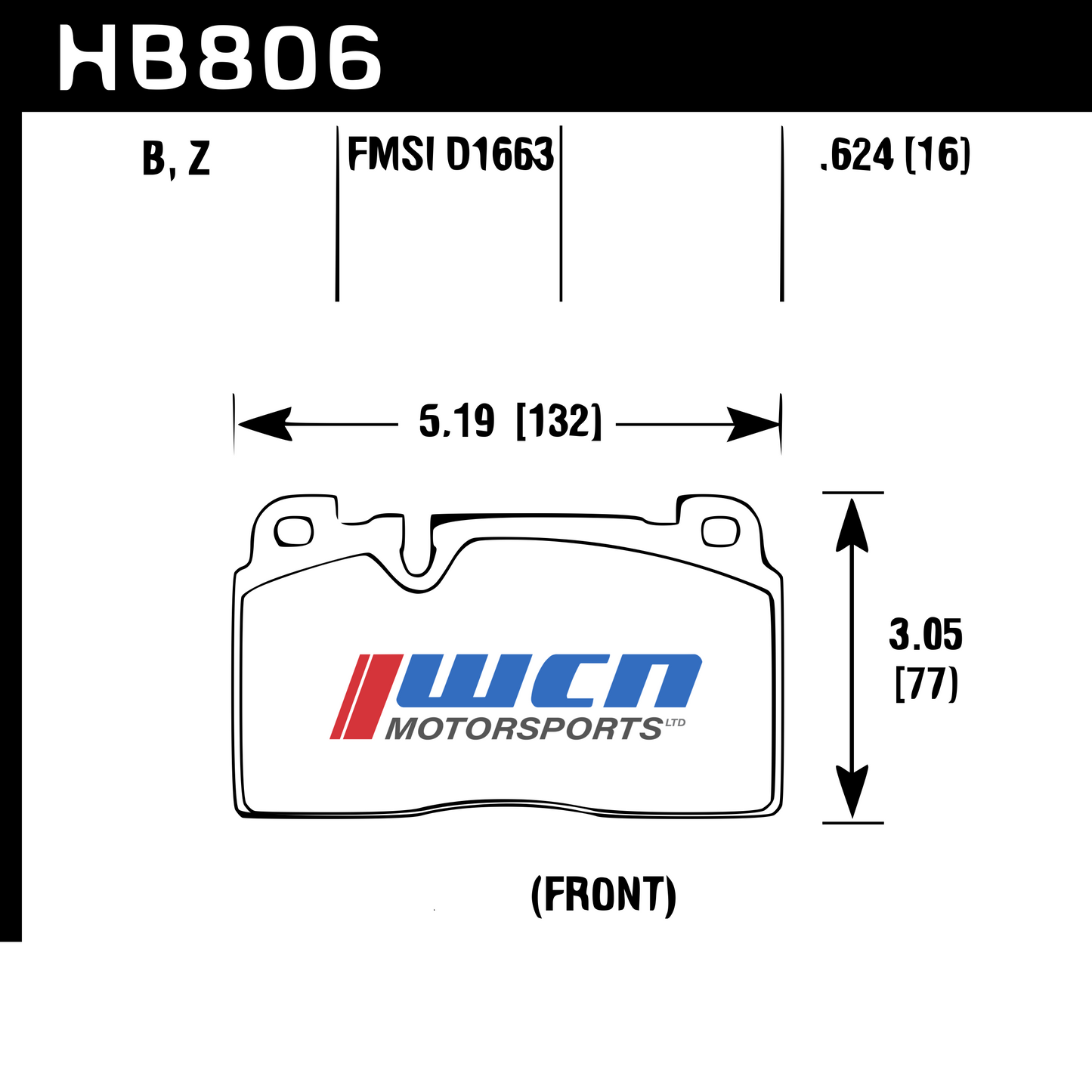

• Hawk HPS 5.0 MACAN FRONT PADS w/ wear indicator option HB806B.624
• Hawk HP Plus HB453N.585

• Hawk DTC-60 HB453G.585
• Hawk ER-1 HB453D.585


Some notes: The 340mm rotors for the MK7 GTI PERFORMANCE PACK edition will work with the caliper upgrade however some have noted a 2-3mm loss in pad sweep and potential overhang. The 345mm X 30mm rotors listed conform to the required contact with out over hang. We are in the process of adding a rear pad, brake line & rotor list for the MQB curated collection.
